| Brakes (front): Ventilated discs, dual-piston calipers |
 |
 |
 |
 |
 |
 |
 |
| Brakes (rear): Ventilated discs, single-piston calipers |
 |
 |
 |
 |
 |
 |
 |
| Brakes: 4-channel/4-sensor/4-wheel Anti-lock Brake System (ABS) |
 |
 |
 |
 |
 |
 |
 |
| Brakes: Active Torque Vectoring |
 |
 |
 |
 |
 |
 |
 |
| Brakes: Auto Vehicle Hold (AVH) |
 |
 |
 |
 |
 |
 |
 |
| Brakes: Brake assist system |
 |
 |
 |
 |
 |
 |
 |
| Brakes: Brake override system |
 |
 |
 |
 |
 |
 |
 |
| Brakes: Electronic Brake-force Distribution (EBD) |
 |
 |
 |
 |
 |
 |
 |
| Brakes: Power-assisted, dual-diagonal system |
 |
 |
 |
 |
 |
 |
 |
| Parking brake: Electronic with push-button actuation |
 |
 |
 |
 |
 |
 |
 |
| Steering: Speed-sensitive, variable gear ratio, electric-assisted rack-and-pinion |
 |
 |
 |
 |
 |
 |
 |
| Structure: Advanced ring-shaped reinforcement frame |
 |
 |
 |
 |
 |
 |
 |
| Structure: Dual side-impact door beams |
 |
 |
 |
 |
 |
 |
 |
| Structure: Energy-absorbing crumple zones (front and rear) |
 |
 |
 |
 |
 |
 |
 |

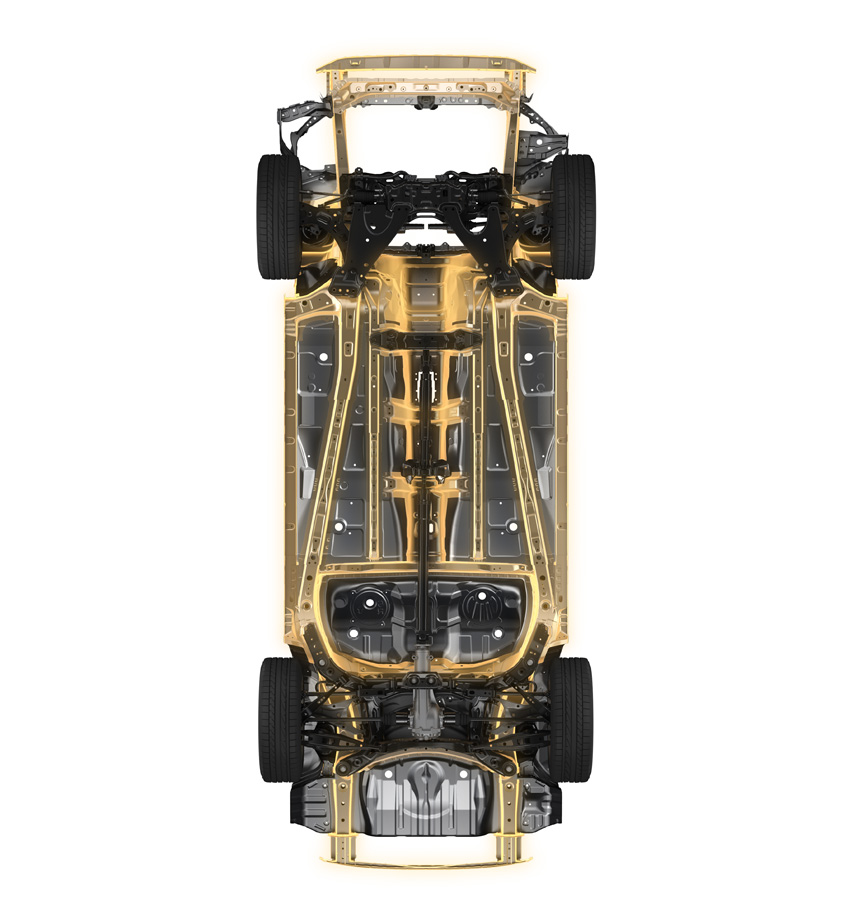

| Structure: Subaru Global Platform (SGP) |
 |
 |
 |
 |
 |
 |
 |
| Structure: Towing access points (1 front, 1 rear) |
 |
 |
 |
 |
 |
 |
 |
| Structure: Towing access points (2 front, 2 rear) |
 |
 |
 |
 |
 |
 |
 |
| Suspension (front): MacPherson-type struts with coil springs and stabilizer bar |
 |
 |
 |
 |
 |
 |
 |
| Suspension (rear): Double wishbone with coil springs and stabilizer bar |
 |
 |
 |
 |
 |
 |
 |
| Suspension: 4-wheel, fully independent |
 |
 |
 |
 |
 |
 |
 |
| Suspension: Off-road tuned |
 |
 |
 |
 |
 |
 |
 |
| Boost pressure (max) (psi): 14.5 |
 |
 |
 |
 |
 |
 |
 |
| Bore x stroke (mm): 94.0 x 86.0 |
 |
 |
 |
 |
 |
 |
 |
| Bore x stroke (mm): 94.0 x 90.0 |
 |
 |
 |
 |
 |
 |
 |
| Compression ratio: 10.6 |
 |
 |
 |
 |
 |
 |
 |
| Compression ratio: 12.0 |
 |
 |
 |
 |
 |
 |
 |
| Displacement (cc): 2,387 |
 |
 |
 |
 |
 |
 |
 |
| Displacement (cc): 2,498 |
 |
 |
 |
 |
 |
 |
 |
| Emissions: Tier3 Bin30/LEV3 SULEV30 |
 |
 |
 |
 |
 |
 |
 |
| Emissions: Tier3 Bin50/LEV3 ULEV50 |
 |
 |
 |
 |
 |
 |
 |

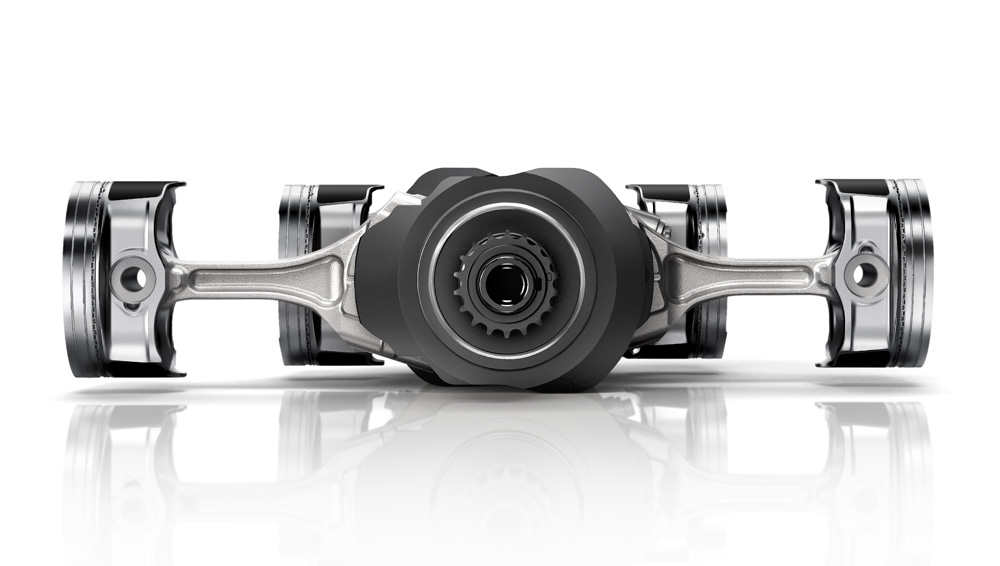

| Engine layout: Horizontally-opposed, 4-cylinder |
 |
 |
 |
 |
 |
 |
 |

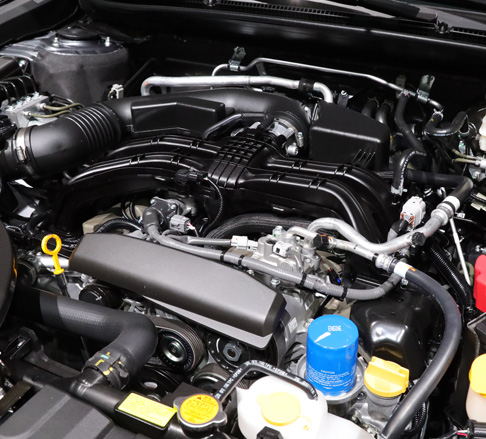

| Engine: 182-hp, 2.5-L Direct Injection, SUBARU BOXER® |
 |
 |
 |
 |
 |
 |
 |

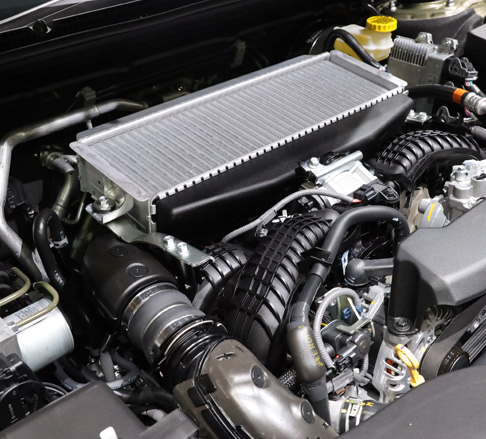

| Engine: 260-hp, 2.4-L Turbocharged Direct Injection, SUBARU BOXER® |
 |
 |
 |
 |
 |
 |
 |
| Fuel octane rating (minimum/recommended) (AKI): 87 |
 |
 |
 |
 |
 |
 |
 |
| Fuel system: Direct fuel injection with electronic throttle control |
 |
 |
 |
 |
 |
 |
 |
| Intake system: Natural Aspiration |
 |
 |
 |
 |
 |
 |
 |
| Intake system: Turbocharged & Intercooled |
 |
 |
 |
 |
 |
 |
 |
| Max RPM (tachometer redline): 6,000 |
 |
 |
 |
 |
 |
 |
 |
| Output (max): 182 hp @ 5,800 rpm |
 |
 |
 |
 |
 |
 |
 |
| Output (max): 260 hp @ 5,600 rpm |
 |
 |
 |
 |
 |
 |
 |
| Torque (max) (lb-ft): 176 lb-ft @ 4,400 rpm |
 |
 |
 |
 |
 |
 |
 |
| Torque (max) (lb-ft): 277 lb-ft @ 2,000-4,800 rpm |
 |
 |
 |
 |
 |
 |
 |
| Valve mechanism: 16-valve DOHC with Variable Valve Timing (VVT) |
 |
 |
 |
 |
 |
 |
 |
| Differential (centre): Electronically controlled multi-plate transfer clutch |
 |
 |
 |
 |
 |
 |
 |
| Differential (Rear): Standard open-type |
 |
 |
 |
 |
 |
 |
 |
| Drivetrain feature: Hill Descent Control |
 |
 |
 |
 |
 |
 |
 |
| Drivetrain feature: Hill start assist |
 |
 |
 |
 |
 |
 |
 |

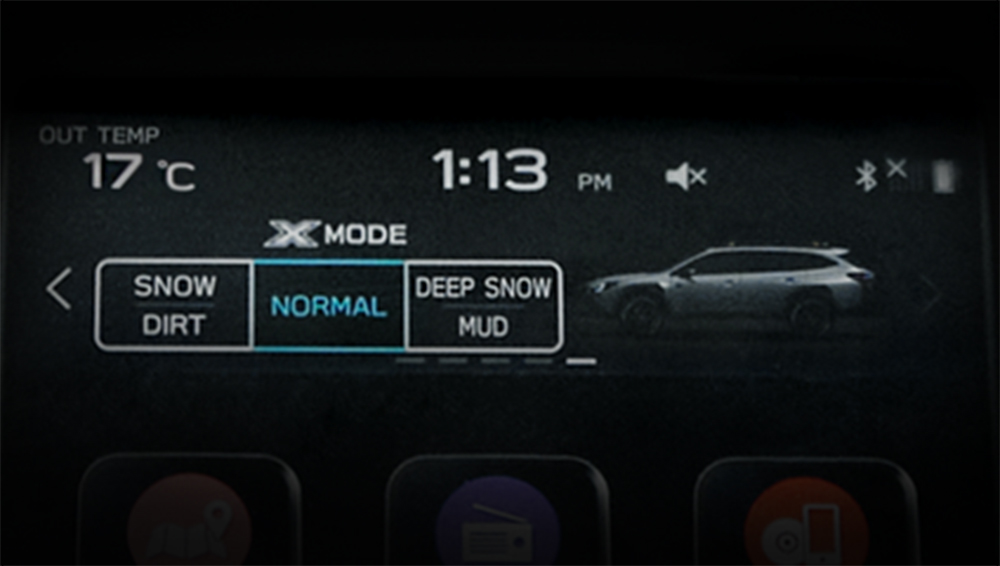

| Drivetrain feature: X-MODE® |
 |
 |
 |
 |
 |
 |
 |
| Drivetrain feature: X-MODE® (dual-function) |
 |
 |
 |
 |
 |
 |
 |
| Drivetrain feature: X-MODE® (enhanced dual-function) |
 |
 |
 |
 |
 |
 |
 |
| Drivetrain: Short ratio transfer and rear differential gearing |
 |
 |
 |
 |
 |
 |
 |

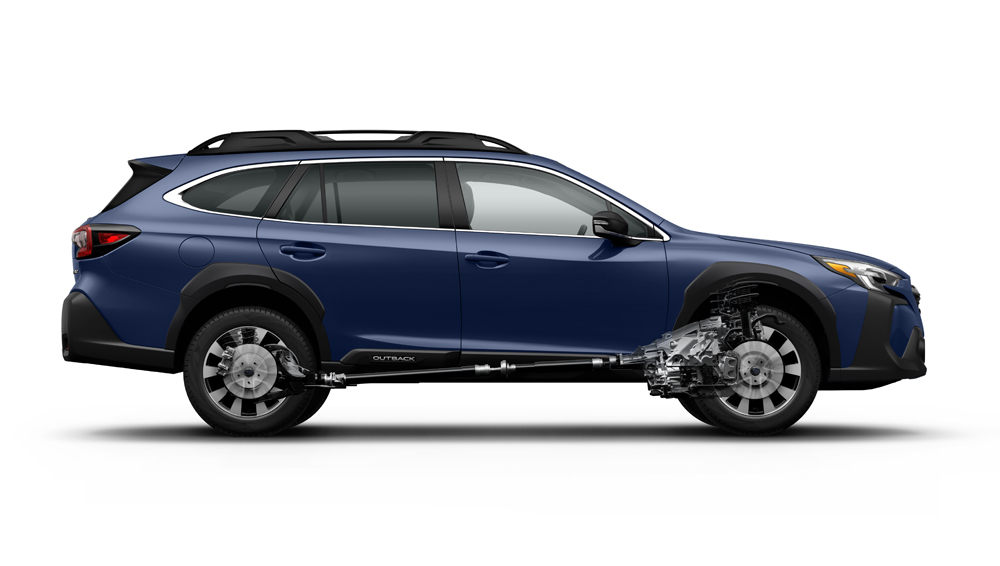

| Drivetrain: Subaru Symmetrical Full-Time All-wheel Drive system (AWD) |
 |
 |
 |
 |
 |
 |
 |
| Transmission feature: CVT oil cooler |
 |
 |
 |
 |
 |
 |
 |
| Transmission feature: Gear position display |
 |
 |
 |
 |
 |
 |
 |
| Transmission feature: Lock-up torque converter |
 |
 |
 |
 |
 |
 |
 |
| Transmission feature: Manual mode with paddle shift controls |
 |
 |
 |
 |
 |
 |
 |
| Transmission feature: Transmission shift lock |
 |
 |
 |
 |
 |
 |
 |
| Transmission modes: Normal; 8-speed manual mode |
 |
 |
 |
 |
 |
 |
 |
| Transmission: High-torque Lineartronic® CVT |
 |
 |
 |
 |
 |
 |
 |
| Transmission: Lineartronic® CVT |
 |
 |
 |
 |
 |
 |
 |
