Brakes (front): Ventilated discs, dual-piston calipers |
|
|
|
|
|
|
|
|
Brakes (rear): Solid discs, single-piston calipers |
|
|
|
|
|
|
|
|
Brakes: 4-channel/4-sensor/4-wheel Anti-lock Brake System (ABS) |
|
|
|
|
|
|
|
|
Brakes: Active Torque Vectoring |
|
|
|
|
|
|
|
|
Brakes: Brake assist system |
|
|
|
|
|
|
|
|
Brakes: Brake override system |
|
|
|
|
|
|
|
|
Brakes: Electronic Brake-force Distribution (EBD) |
|
|
|
|
|
|
|
|
Brakes: Power-assisted, dual-diagonal system |
|
|
|
|
|
|
|
|
Parking brake: Manual with hand-brake lever |
|
|
|
|
|
|
|
|
Steering: Speed-sensitive, electric-assisted rack-and-pinion |
|
|
|
|
|
|
|
|
Structure: Advanced ring-shaped reinforcement frame |
|
|
|
|
|
|
|
|
Structure: Dual side-impact door beams |
|
|
|
|
|
|
|
|
Structure: Energy-absorbing crumple zones (front and rear) |
|
|
|
|
|
|
|
|
Structure: Subaru Global Platform (SGP) |
|
|
|
|
|
|
|
|
Suspension (front): MacPherson-type struts with coil springs and stabilizer bar |
|
|
|
|
|
|
|
|
Suspension (rear): Double wishbone with coil springs and stabilizer bar |
|
|
|
|
|
|
|
|
Suspension: 4-wheel, fully independent |
|
|
|
|
|
|
|
|
Bore x stroke (mm): 84.0 x 90.0 |
|
|
|
|
|
|
|
|
Bore x stroke (mm): 94.0 x 90.0 |
|
|
|
|
|
|
|
|
Compression ratio: 12.0 |
|
|
|
|
|
|
|
|
Compression ratio: 12.5 |
|
|
|
|
|
|
|
|
Displacement (cc): 1,995 |
|
|
|
|
|
|
|
|
Displacement (cc): 2498 |
|
|
|
|
|
|
|
|
Emissions: Tier3 Bin30/LEV3 SULEV30 |
|
|
|
|
|
|
|
|

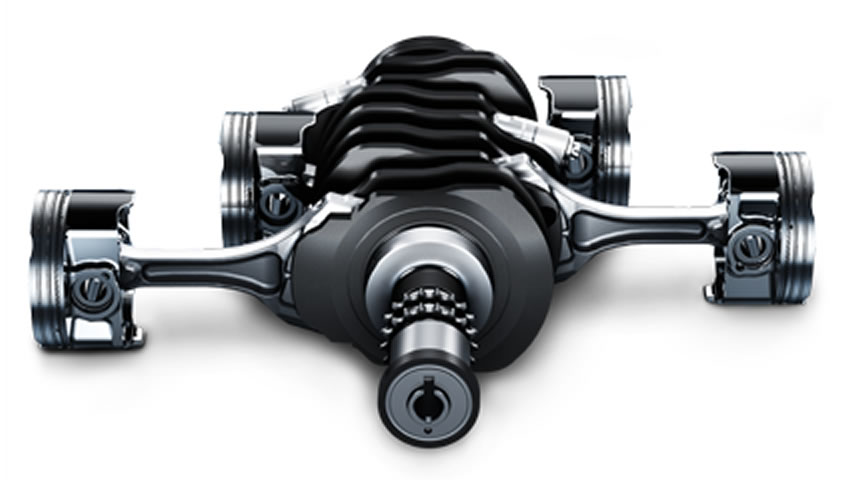

Engine layout: Horizontally-opposed, 4-cylinder |
|
|
|
|
|
|
|
|

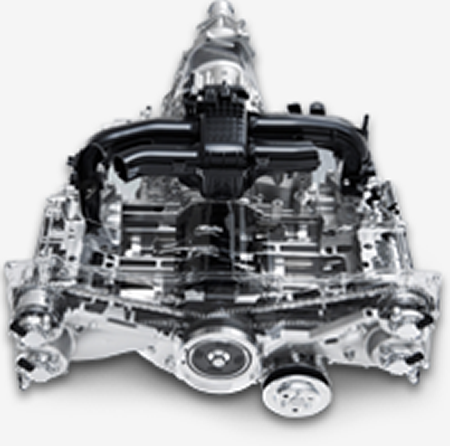

Engine: 152-hp, 2.0-L Direct Injection, SUBARU BOXER® |
|
|
|
|
|
|
|
|

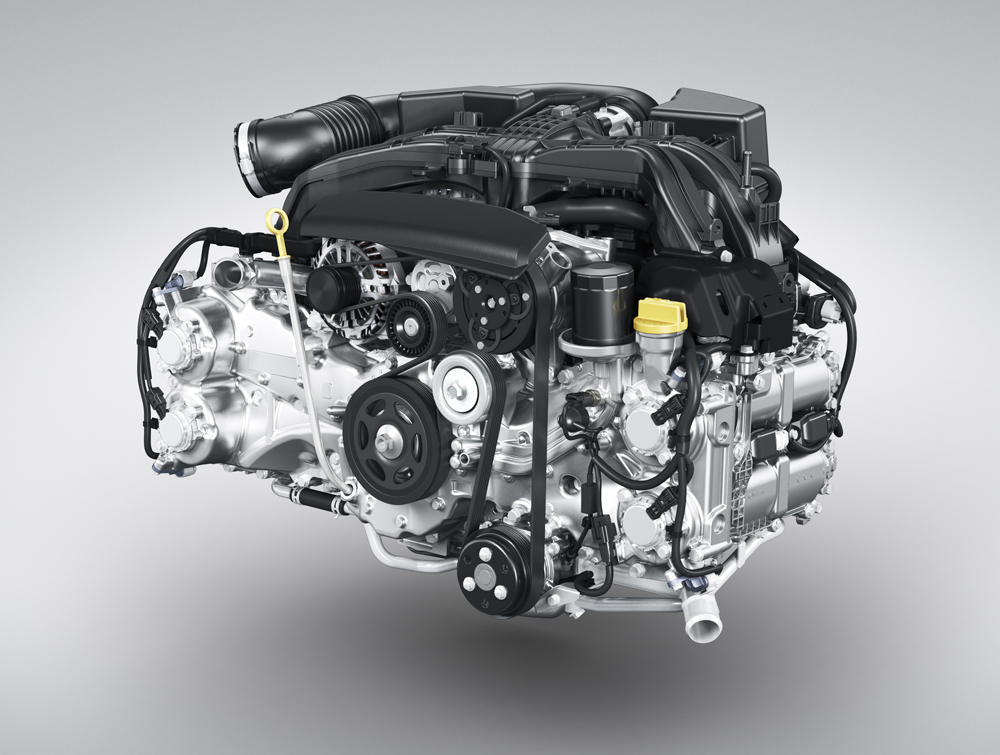

Engine: 182-hp, 2.5-L Direct Injection, SUBARU BOXER® |
|
|
|
|
|
|
|
|
Fuel octane rating (minimum/recommended) (AKI): 87 |
|
|
|
|
|
|
|
|
Fuel system: Direct fuel injection with electronic throttle control |
|
|
|
|
|
|
|
|
Horsepower (peak) (hp): 152 |
|
|
|
|
|
|
|
|
Horsepower (peak) (hp): 182 |
|
|
|
|
|
|
|
|
Intake system: Natural Aspiration |
|
|
|
|
|
|
|
|
Output (max): 152 hp @ 6,000 rpm |
|
|
|
|
|
|
|
|
Output (max): 182 hp @ 5 800 rpm |
|
|
|
|
|
|
|
|
Torque (max) (lb-ft): 145 lb-ft @ 4,000 rpm |
|
|
|
|
|
|
|
|
Torque (max) (lb-ft): 176 lb-ft @ 4 400 rpm |
|
|
|
|
|
|
|
|
Torque (peak) (lb-ft): 145 |
|
|
|
|
|
|
|
|
Torque (peak) (lb-ft): 176 |
|
|
|
|
|
|
|
|
Valve mechanism: 16-valve DOHC with Variable Valve Timing (VVT) |
|
|
|
|
|
|
|
|
Differential (centre): Electronically controlled multi-plate transfer clutch |
|
|
|
|
|
|
|
|
Differential (centre): Viscous-coupling limited-slip |
|
|
|
|
|
|
|
|
Differential (Rear): Standard open-type |
|
|
|
|
|
|
|
|
Drivetrain feature: Hill Descent Control |
|
|
|
|
|
|
|
|
Drivetrain feature: Hill start assist |
|
|
|
|
|
|
|
|

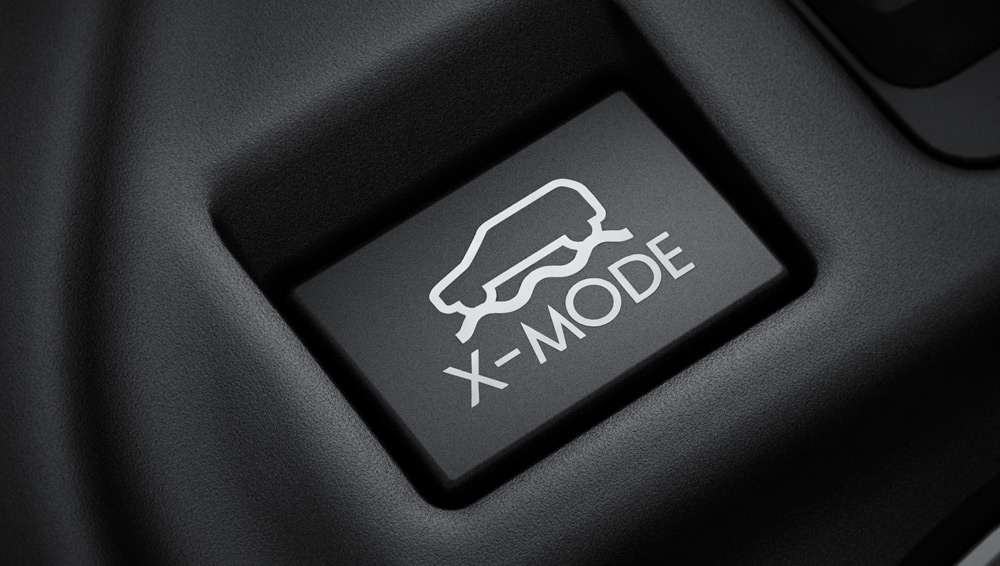

Drivetrain feature: X-MODE® |
|
|
|
|
|
|
|
|
Drivetrain feature: X-MODE® (dual-function) |
|
|
|
|
|
|
|
|

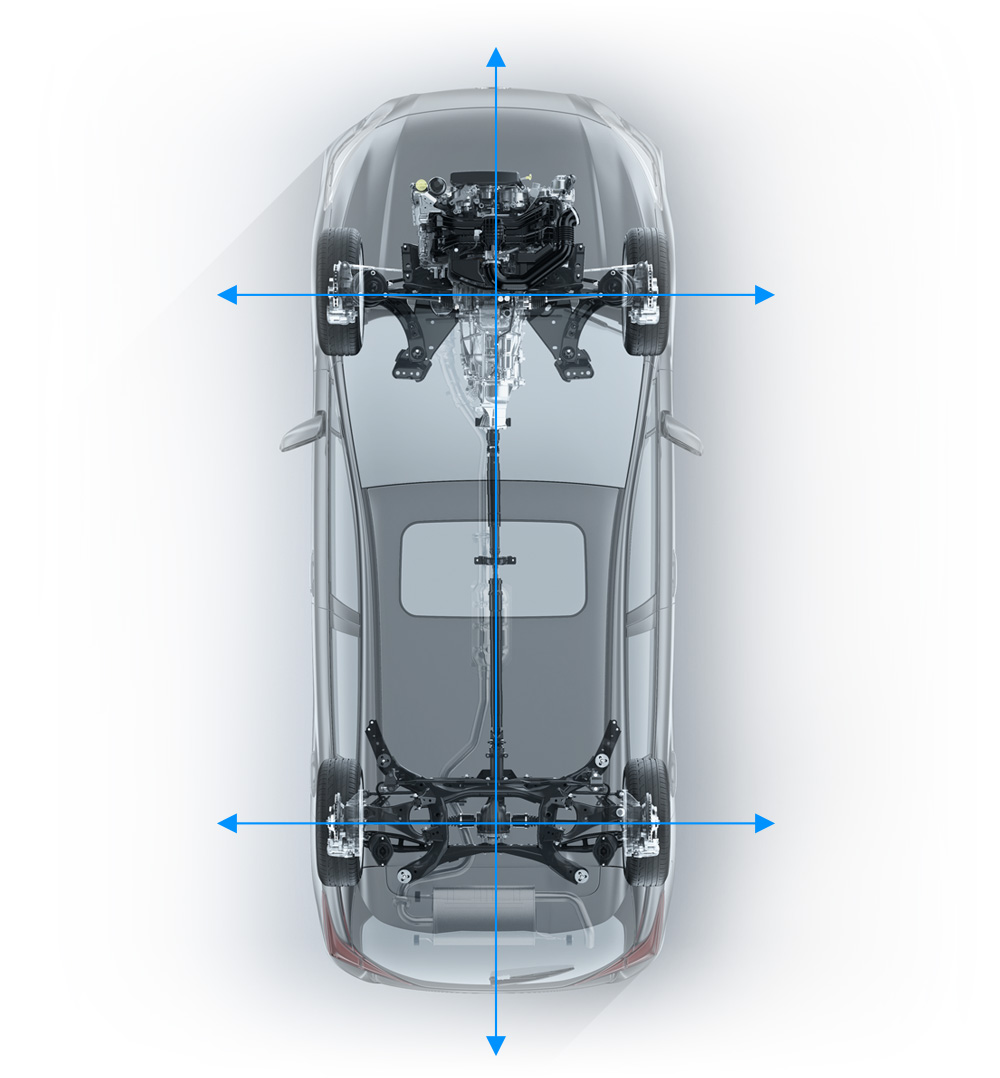

Drivetrain: Subaru Symmetrical Full-Time All-wheel Drive system (AWD) |
|
|
|
|
|
|
|
|
Transmission feature: Fully-synchronized, including reverse |
|
|
|
|
|
|
|
|
Transmission feature: Gear position display |
|
|
|
|
|
|
|
|
Transmission feature: Hydraulically-operated, dry single-plate disc clutch |
|
|
|
|
|
|
|
|
Transmission feature: Lock-up torque converter |
|
|
|
|
|
|
|
|
Transmission feature: Manual mode with paddle shift controls |
|
|
|
|
|
|
|
|
Transmission feature: SI-DRIVE® (2-mode) |
|
|
|
|
|
|
|
|
Transmission feature: Starter interlock system (clutch pedal controlled) |
|
|
|
|
|
|
|
|
Transmission feature: Transmission shift lock |
|
|
|
|
|
|
|
|
Transmission modes: Normal; 8-speed manual mode |
|
|
|
|
|
|
|
|

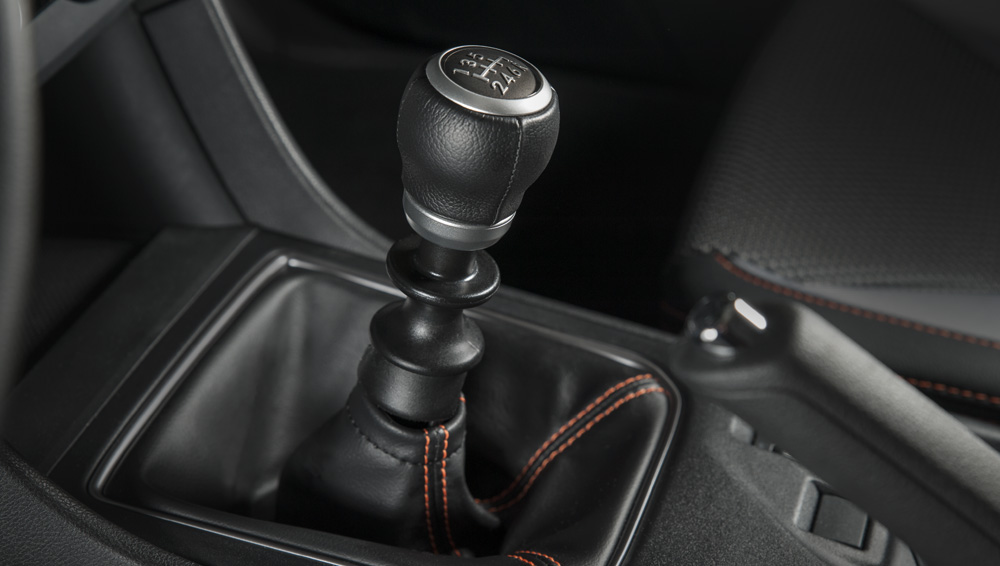

Transmission: 6-speed manual |
|
|
|
|
|
|
|
|

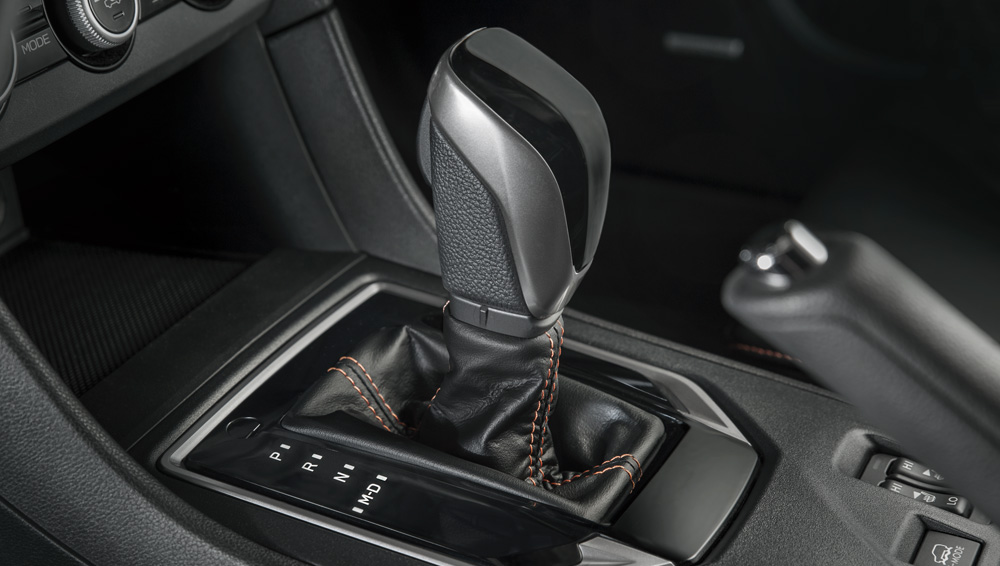

Transmission: Lineartronic® CVT |
|
|
|
|
|
|
|
|
